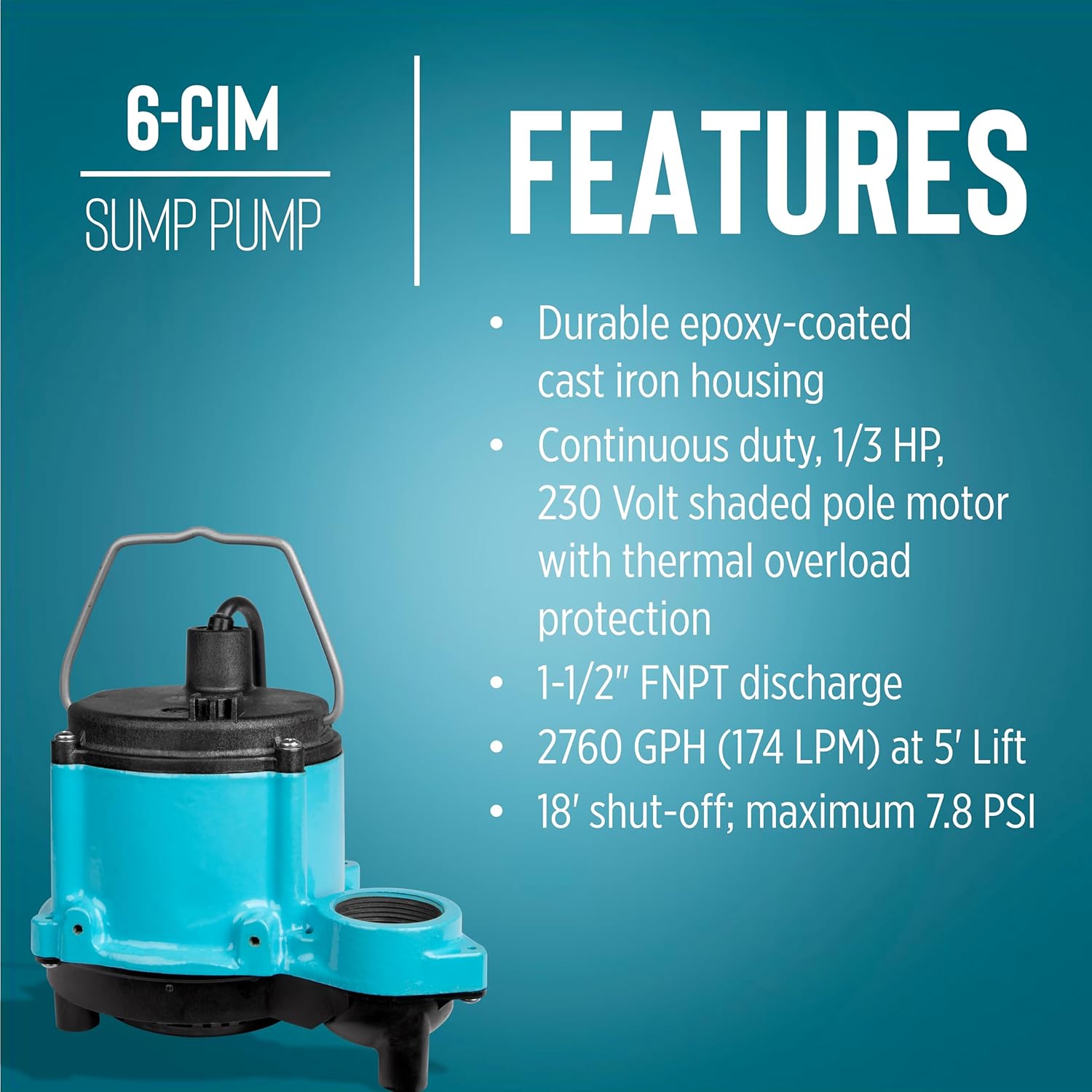

Little Giant 6-CIM 230 Volt, 50/60 Hz, 1/3 HP, 2760 GPH Cast Iron Manual (No Switch) Submersible Sump Pump for Sump Systems, 12-Ft. Lead Wires, Blue, 506266

The Little Giant 506266 6-CIM submersible epoxy-coated cast iron sump pump is equipped with a 1/3 hp 230-volt, shaded pole, oil-filled motor with thermal overload protection and is designed for continuous duty. This pump deliver up to 2760 gph (46 gpm) at 5' lift, have a shut-off of 18' and a maximum psi of 7.0. This unit is equipped with a 1-1/2 FNPT discharge. The maximum fluid temperature is 140 °F. The 506266 model comes with 12' leads and does not come with a plug. ELECTRICAL EXPERIENCE IS REQUIRED.The Little Giant 506266 6-CIM manual sump pump is designed specifically for sump systems. This system requires a switch for automatic operation which is SOLD SEPARATELY. SWITCH OPTION TIPS:- Integral diaphragm switches are designed for sump systems only. Minimum basin diameter required is 10".- Mid-level integral diaphragm switches cycle more frequently. They are designed for shallow under sink or laundry tub systems. Minimum basin diameter required is 10".- Piggyback float switches are designed for sump systems, emergency water removal or water transfer applications. They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. Float switches require more room to activate the switch, the minimum basin diameter is 18".- Piggyback diaphragm switches are designed for sump systems, emergency water removal or water transfer applications; They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. The minimum basin diameter is 10".- Manual does not come with a switch; piggyback switches (sold separately) can be added easily.

• MANUAL SUBMERSIBLE PUMP FOR SUMP SYSTEMS: ideal for sump pump systems with a separate switch (switch sold separately); this is 230 Volt and cannot be plugged into wall outlets
• BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal
• CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 4.5 running Amps, 7.2 starting Amps, 720 Watts, thermally protected; 230 Volts - comes with lead wires only, must be wired into the power source
• MULTIPLE FITTINGS: 1-1/2-inch FNPT discharge; 1-1/4-Inch FNPT adapter and 3/4-inch garden hose adapter included
• SPECIFICATIONS: 1/3 hp; 230 Volts; 50/60 Hz; 4.5 running Amps; 7.2 starting Amps; 720 Watts; 2760 gph at 5' lift; 18' shut-off; 12' leads (no plug); 1.5" FNPT discharge; 140° max fluid temperature
