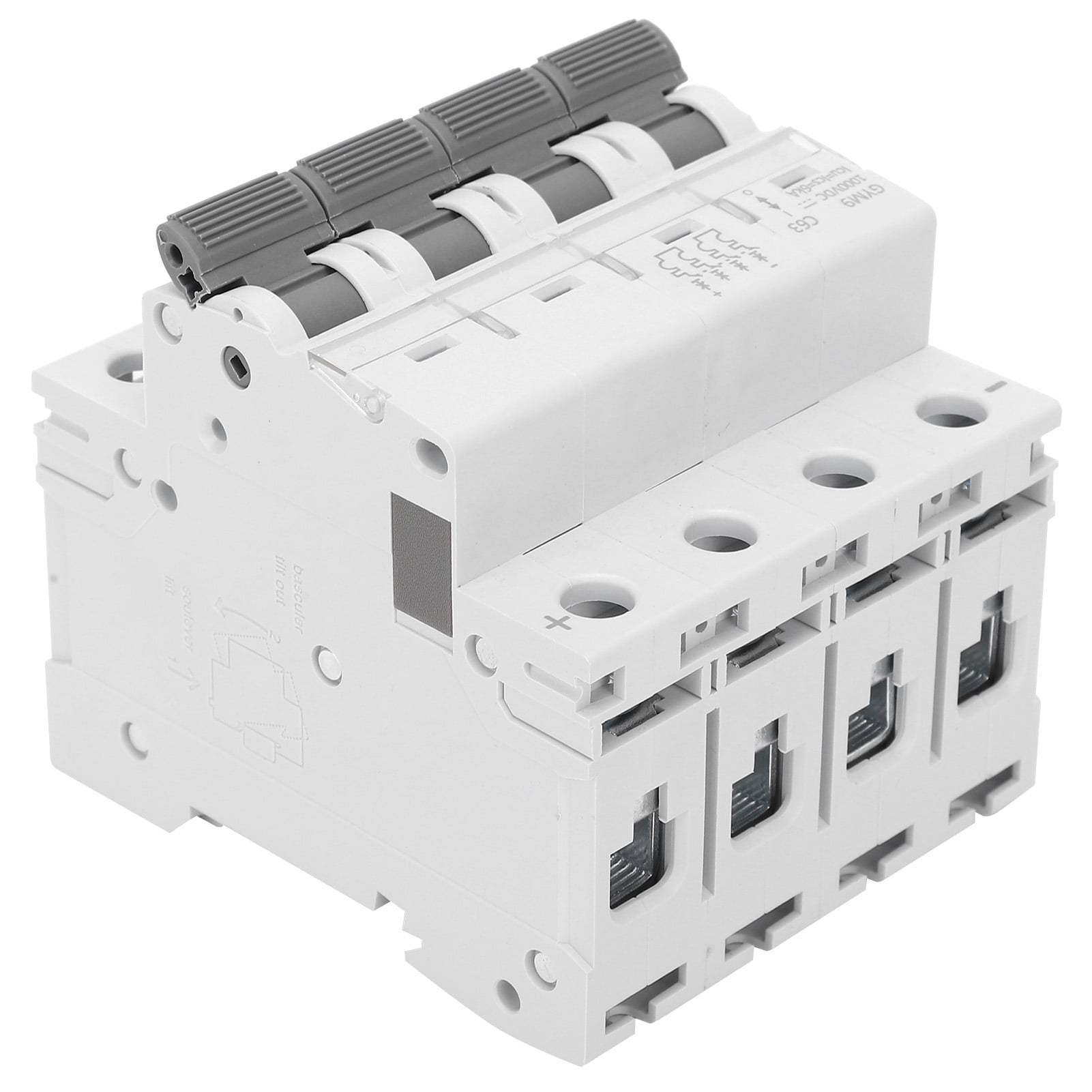

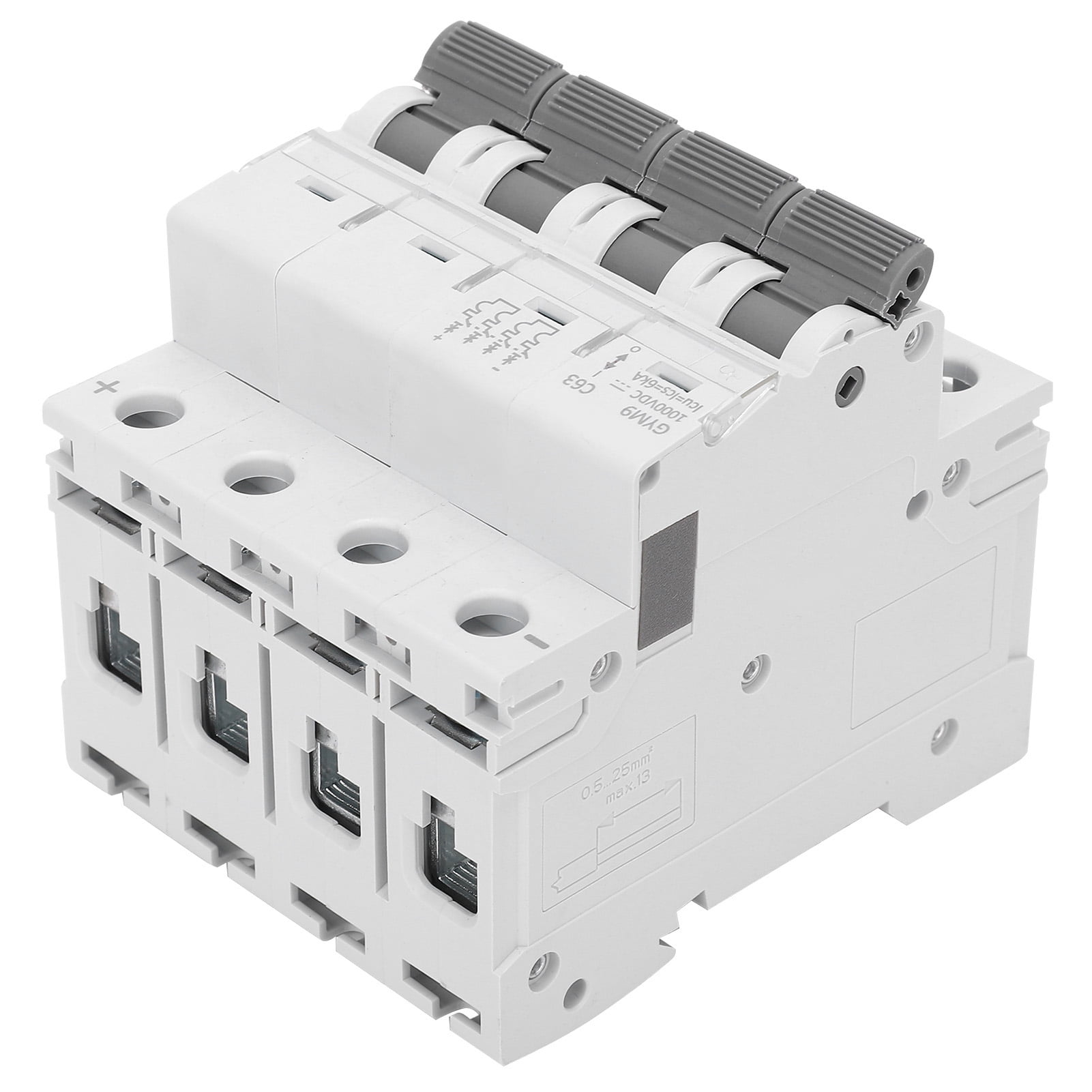

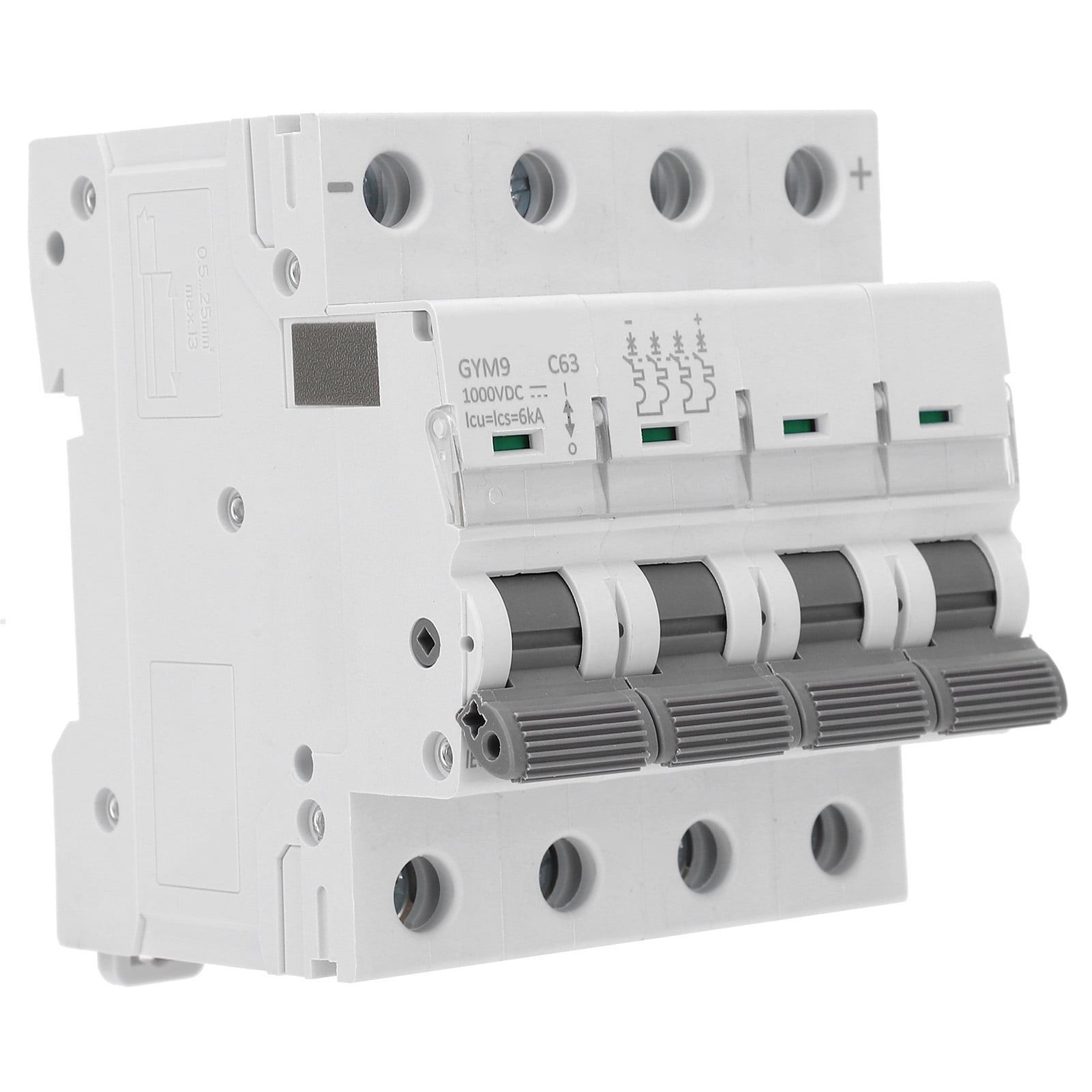

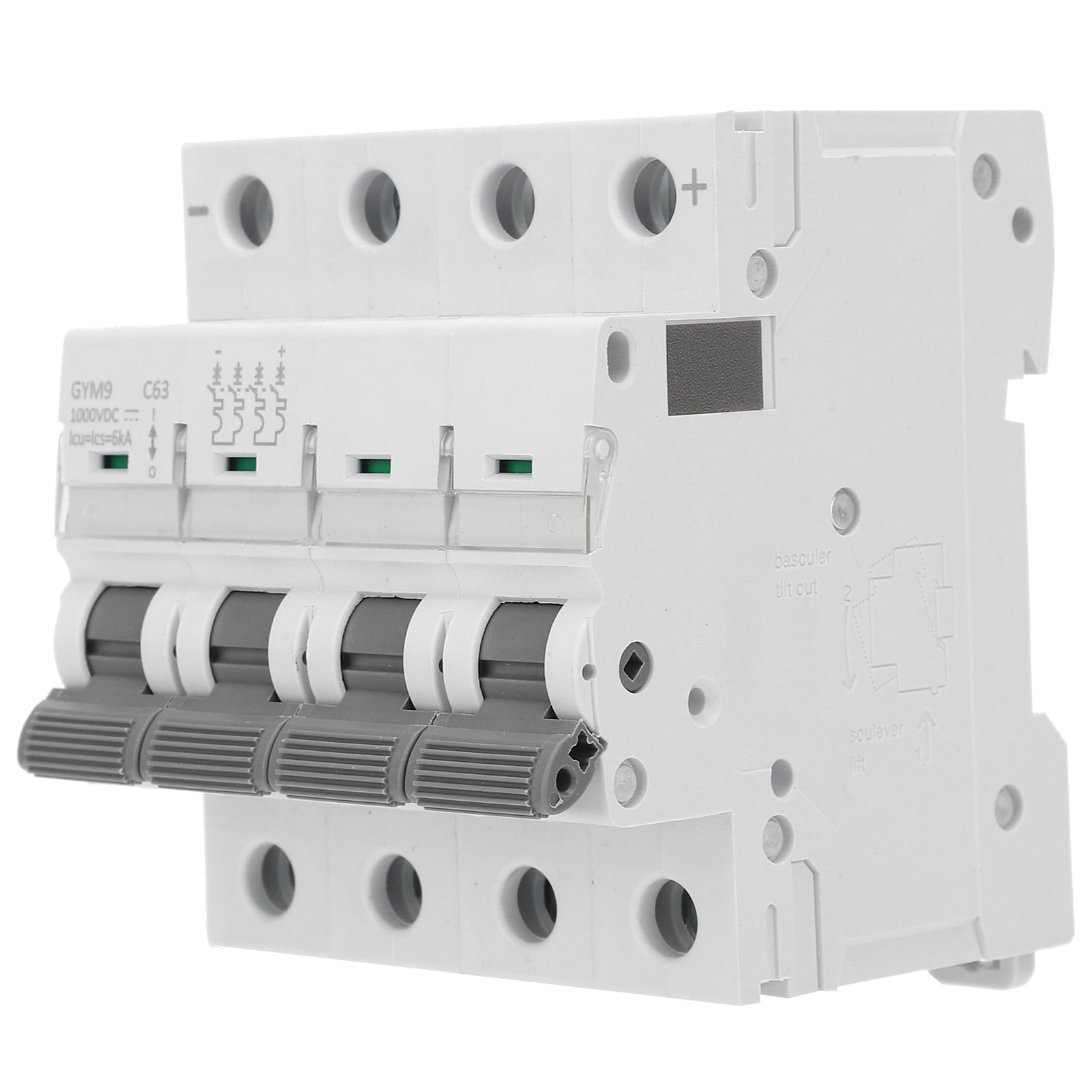

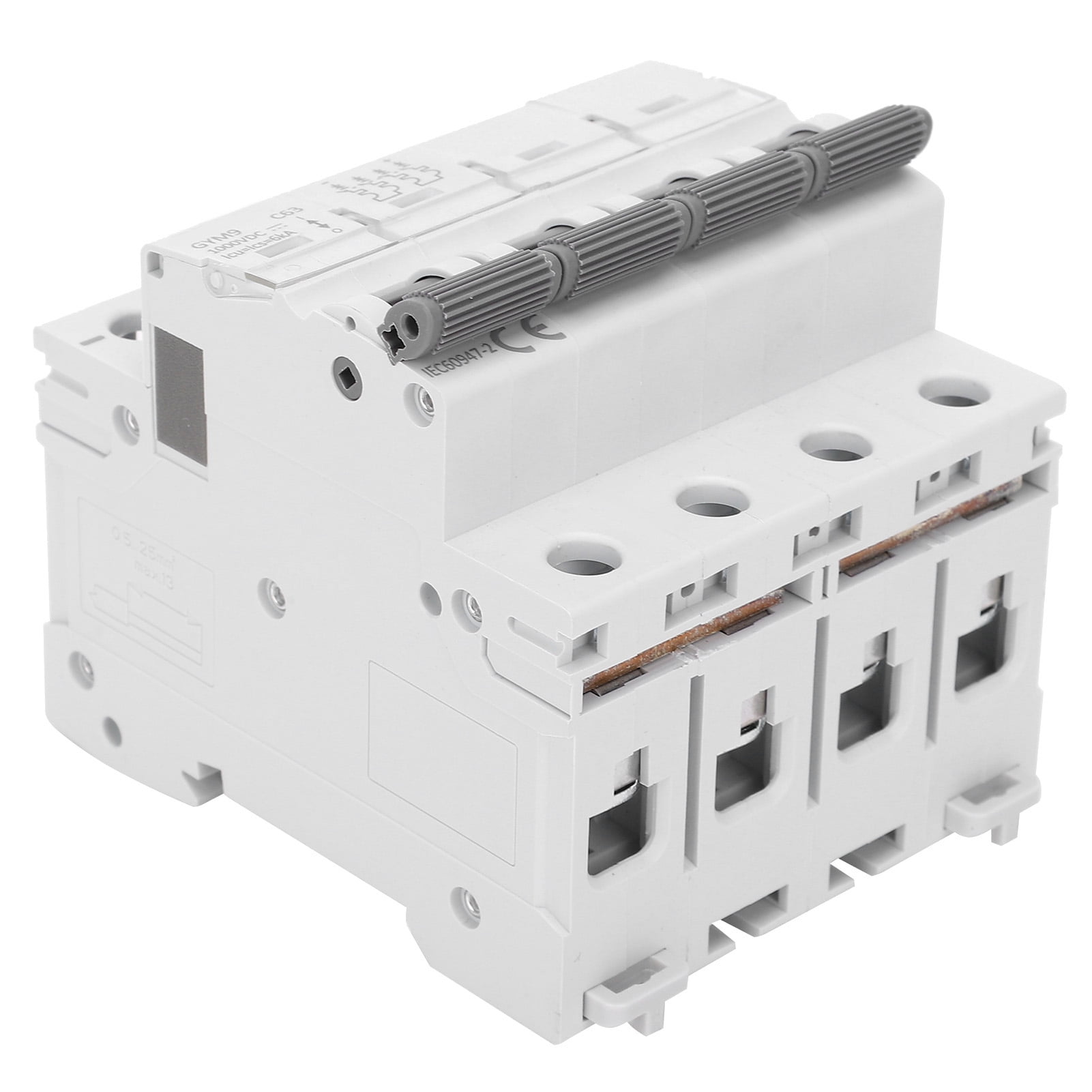

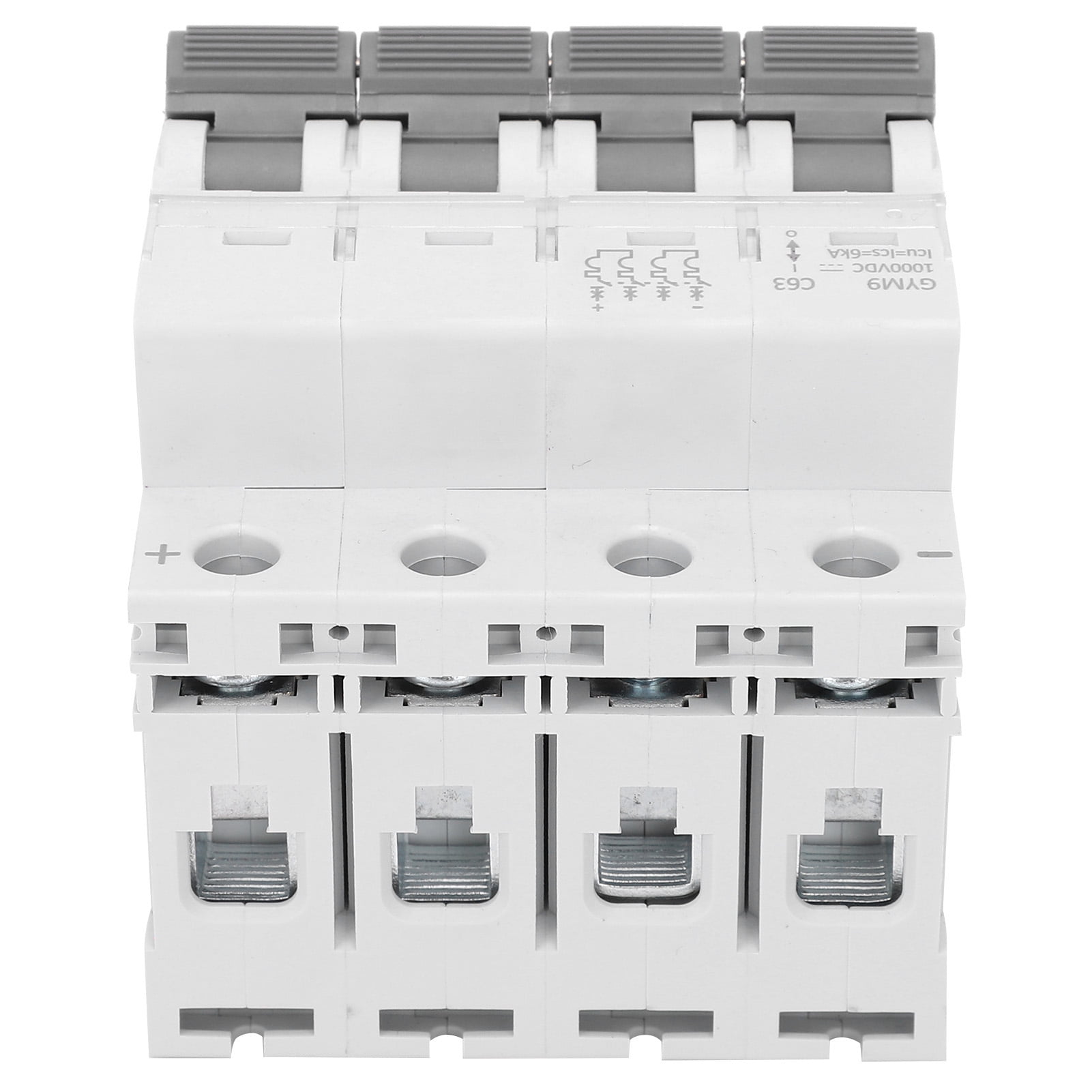

DC Circuit Breaker Mini DIN Rail Installation Protection Equipment GYM9‑C63 4P 1000V
Product details
| Management number | 231002661 | Release Date | 2026/06/18 | List Price | US$15.60 | Model Number | 231002661 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Item Type: DC Circuit BreakerRated Current: 1-63A Number of Poles: 4P Rated Voltage: 4P：1000V Insulation Voltage: 1000V Rated Breaking Capacity: 6000A Rated Impulse Withstand Voltage: 6kV Power Frequency Withstand Voltage (1min): 2kV Pollution Degree: 2 Trip Curve: B: 6In ± 20%: C: 12In ± 20% Mechanical Life: 10000 Mechanical Characteristics: Contact Indication: Yes Protection Level: IP20 Adjusting Temperature: 30℃ Ambient Temperature (average Daily Temperature s35℃): -5~+40℃ Storage Temperature: -25-+70℃ Connection Method: Wire and cable / U‑shaped female cable / pin‑shaped female cable . Wire Connection Specification (up/down): 25mm²18-3 Torsion: 3.0N m, 22 Installation: DIN60715 (35mm) standard rail Wiring: Refer to the wiring diagram
- 1、With contact position indication function, small size and good performance.
- 2、The circuit breaker has a transparent sheet design, it is convenient for customers to quickly identify.
- 3、With a double return row design, which is convenient for customers to connect quickly.

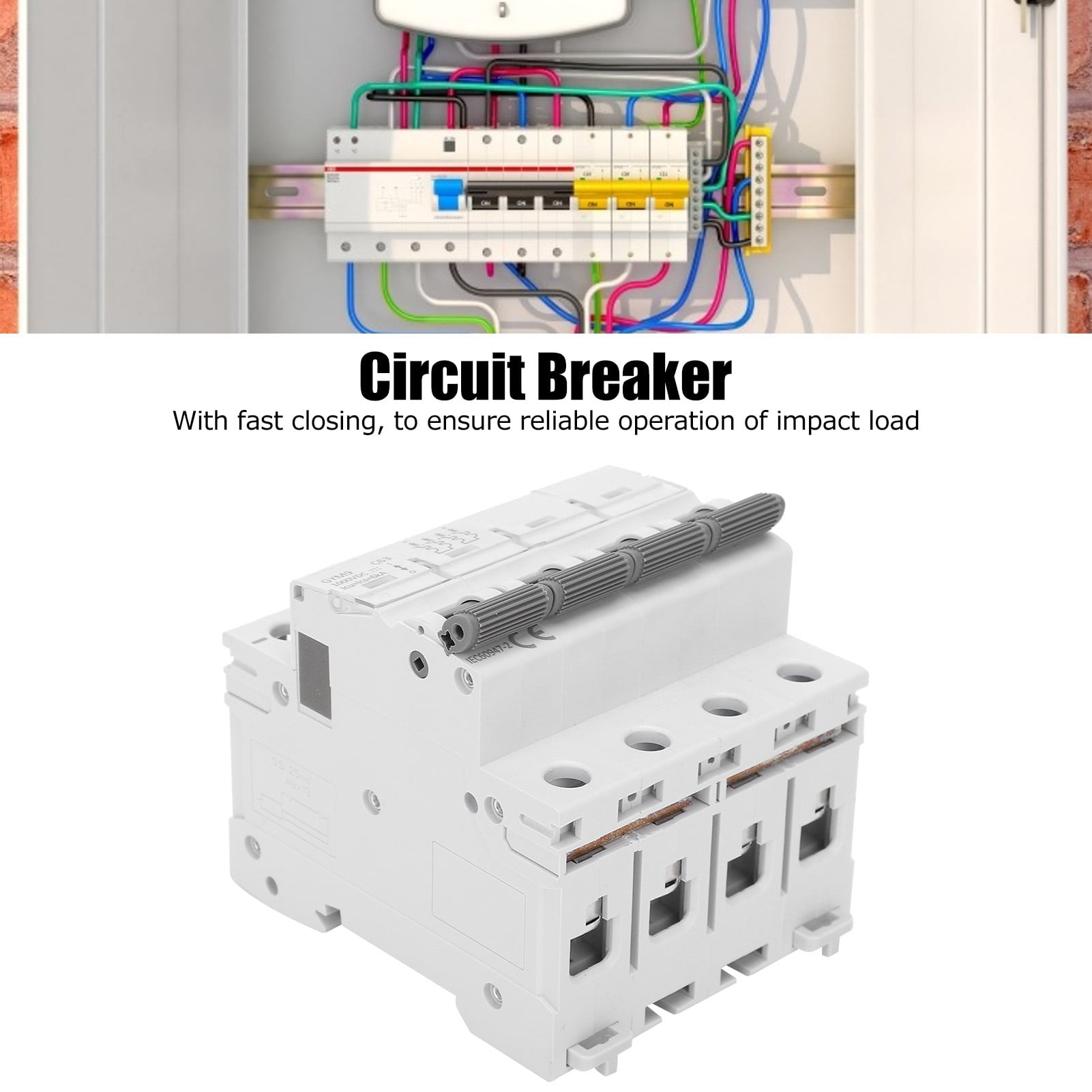

- 4、The product has a fast closing function to ensure reliable operation of impact loads and prolong service life.
- 5、The circuit breaker has wire and cable / U‑shaped female cable / pin‑shaped female cable 3 wiring methods.
| Brand | Cassaker |
|---|---|
| Has nrtl listing certification | N |
| Has written warranty | No |
| Count | 1 |
